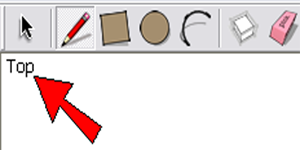

2. Switch to Top view (from the main menu, choose Camera / Standard Views / Top). You should see the word “Top” at the top left corner.
![]() |

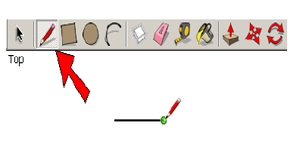

3. Activate the Line tool and draw a short horizontal line. Press Esc when finished, so you won’t continue drawing more lines.
![]() |

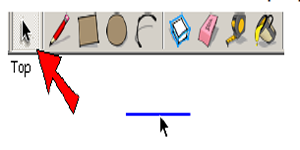

4. Each step of this project involves making rotated copies of everything created so far. For now, this means copying just a single line. Activate the Select tool and click the line you just drew, to select it.
![]() |

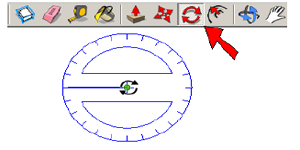

5. Activate the Rotate tool, and click the endpoint on the right side of the line, to place the protractor there.
![]() |

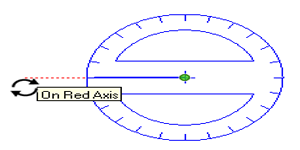

6. Move the cursor directly to the left (along the red axis) and click again. This establishes the zero angle of rotation.
![]() |
